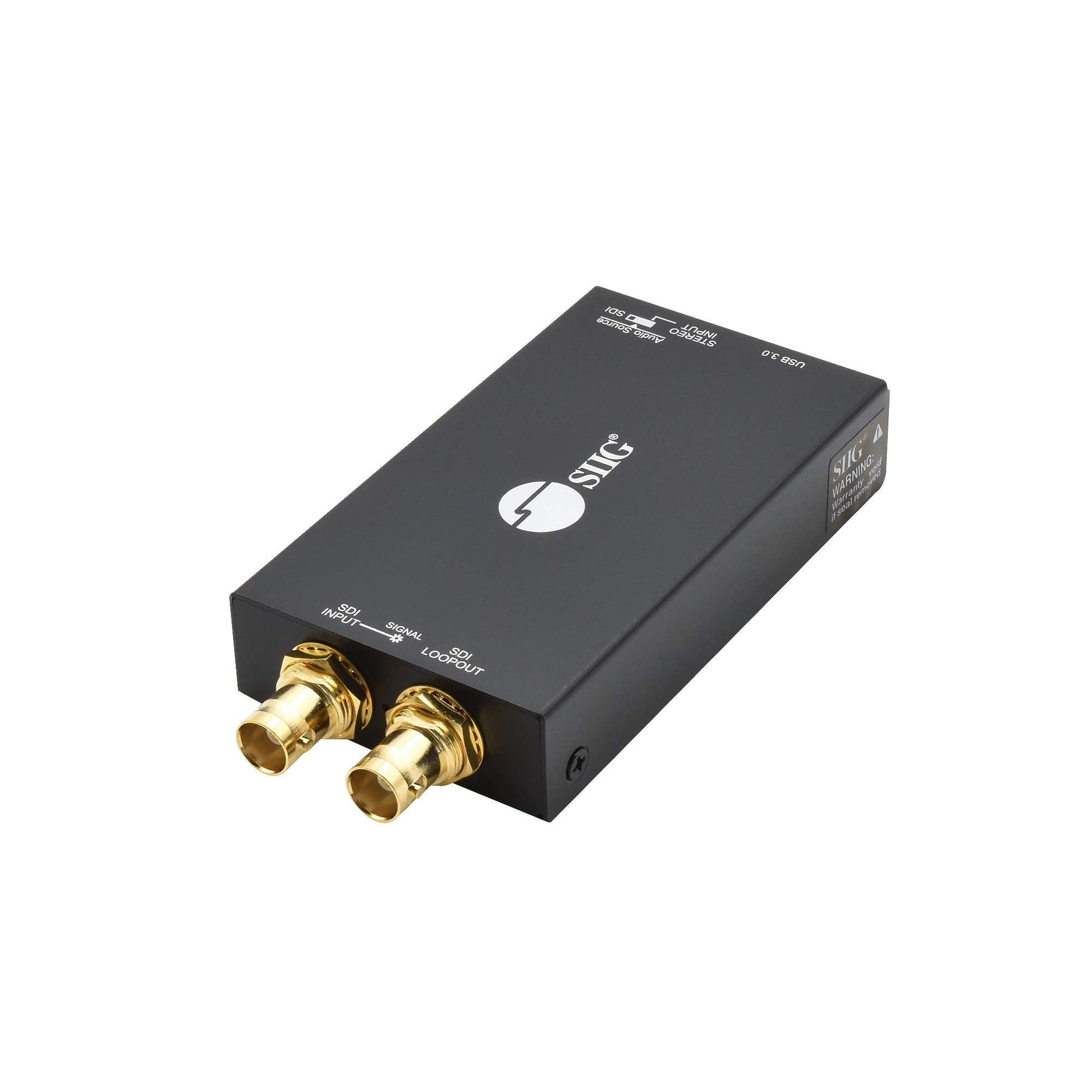

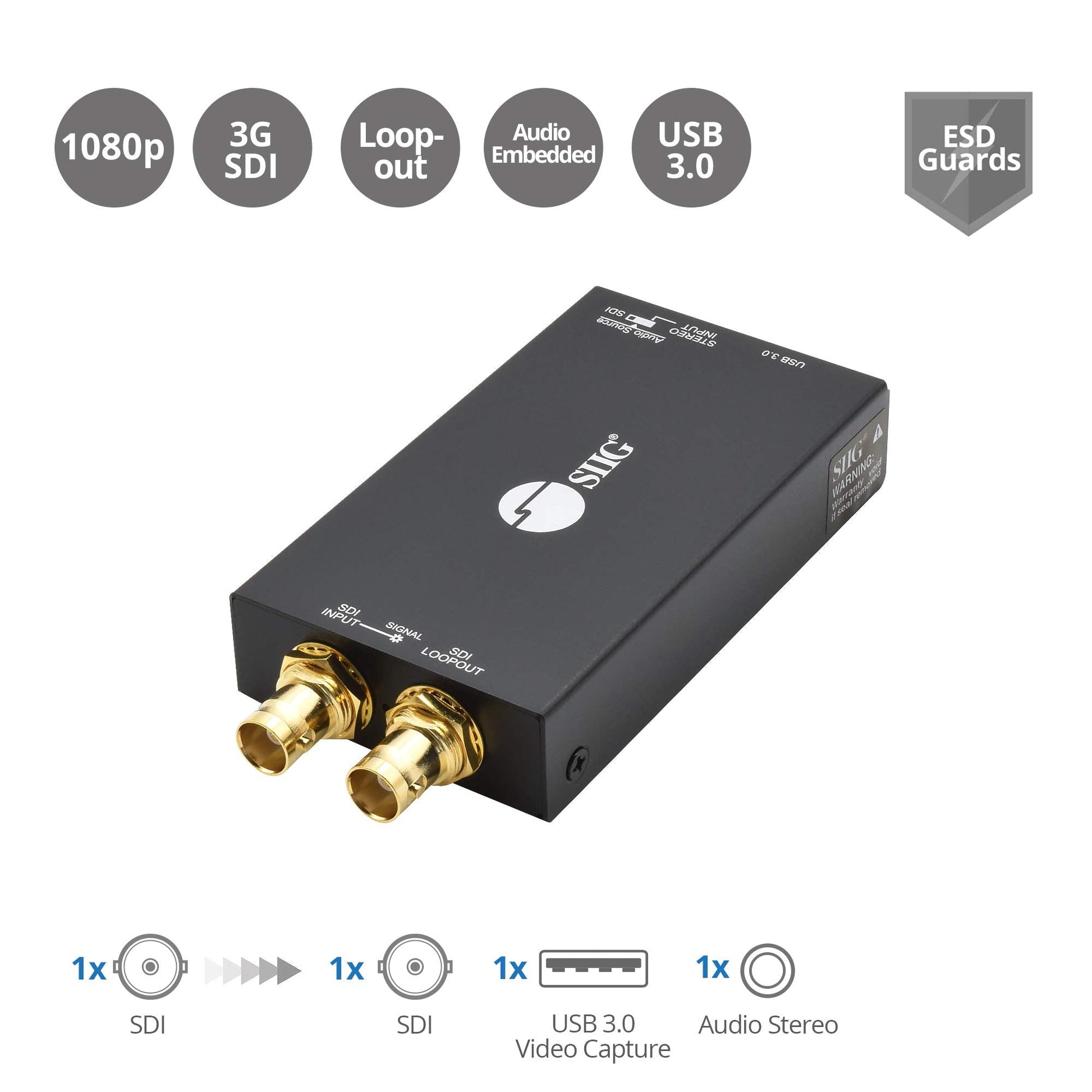

Siig Sdi Video Capture Card With Sdi Loop Out, 1080P 3G/Hd/Sd-Sdi Capture, Usb 3.0 1080P Record, Scaler, Audio Embedding, For Sd

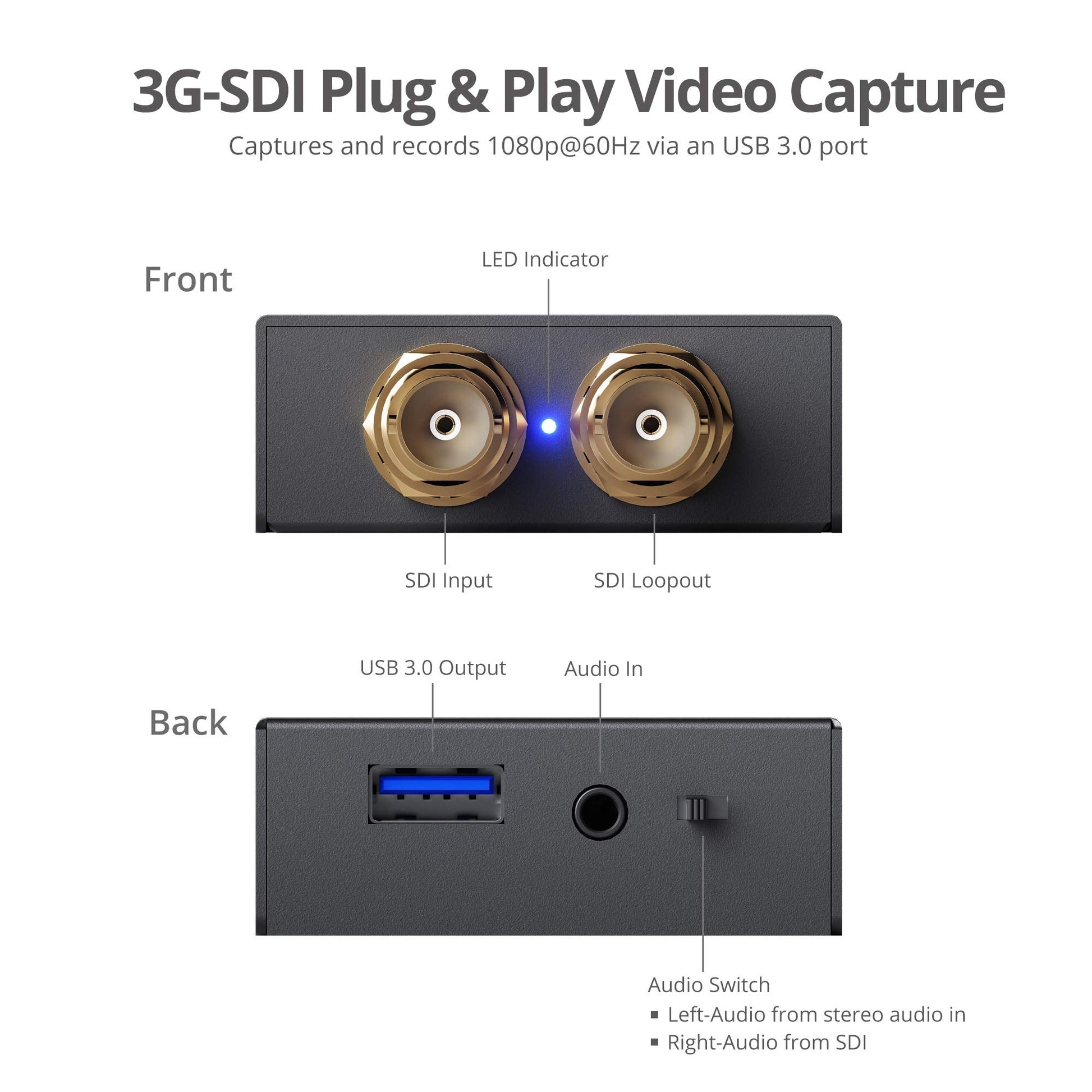

Specifications: Chipset: Ej511Version: Usb 3.0Input Video Bandwidth: 2.970 Gbps, 2,970/1.001 Gbpsoutput Video Bandwidth: Up To 350Mbps (Usb 3.0)Video Resolution: Up To 1080P@60Hzrecoding Mode: H.264 (Software Compression)Recoding Video Format: Yuy2 (Usb 3.0) / Mjpg (Usb 2.0 / 3.0)Audio Input: Sdi Embedded Audio &Amp; Stereo Audio Inputaudio Format: 2 Channel, 44.1 And 48Khz Sample Rate, Up To 16Bit Pcmsoftware Compatibility: Obs Studio (Windows, Linux), Amcap (Windows), Potplayer (Windows), Skype (Windows, Os X), Hangout (Windows), Teamviewer (Windows)Esd Protection: Human Body Model &Plusmn;15Kv (Air-Gap Discharge); &Plusmn;8Kv (Contact Discharge)Product:Dimensions: 4.86 (L) X 0.79 (H) X 2.18 (W)Weight: 0.37 Lbscolor: Blackhousing Material: Metalconnectors:1X Sdi, Video Input1X Sdi, Video Loop-Out1X 3.5Mm Audio Input1X Usb 3.0 Type-A, Female For Pc And Fw Update1X Slide Switch, Audio Mode Selectionenvironmental Conditions:Operating Temperature: 32 To 104 Degrees F Storage Temperature: -4 To 140 Degrees Frelative Humidity: 20 To 90% Rh (Non-Condensing)Certifications/Standards: Fcc, Ce, Rohstaa Compliantwarranty: 3 Years Limitedcountry Of Origin: Taiwan System Requirements: Desktop Pc With One Available Usb 3.0 Portwindows&Reg; 10 / 8.1 / 7 (32-/64-Bit)Macos&Reg; 10.15 / 11 Package Contents: Usb 3.0 3G-Sdi Capture Device With Loopoutusb 3.0 A To A Cablequick Start Guide
